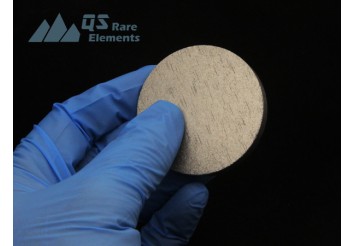

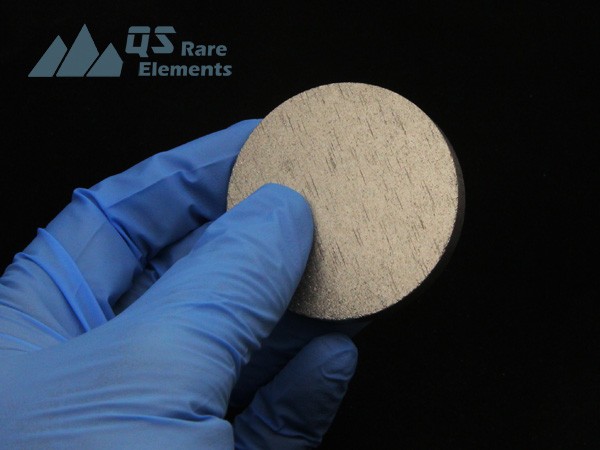

Cadmium Selenide (CdSe) Sputtering Targets
Composition: Cadmium Selenide (CdSe)
Catalog No.DPSE48ST
Purity:99.9% ~ 99.999%
Please click for discount and other size
Click here for the specifications of CdSe sputter target
Click here for the SDS document of CdSe Sputter Target
- Product Details
Cadmium Selenide (CdSe) sputtering target specifications
Formula: CdSe
CAS No.: 1306-24-7
Max. dia. of flat disc sputter target: 10"
Typical lead time of CdSe sputtering target: 4 weeks
Regular Dimensions and Price of Cadmium Selenide (CdSe) Sputtering Target
Product Name |
Reference Price |
|
2"dia
x 1/8"t Cadmium Selenide sputtering target |
$912 | Add to Chart |
3"dia
x 1/8"t Cadmium Selenide sputtering target |
$1,173 |
Add to Chart |
2"dia
x 1/8"t CdSe sputtering target with In bonding to Cu bck plt |
$992 |
Add to Chart |
3"dia
x 1/8"t CdSe sputtering target with In bonding to Cu bck plt |
$1,308 | Add to Chart |
About Our Sputtering Target
QS Advanced Materials Inc is a professional supplier of custom manufacturered R&D consumptions. Our equipment setup are flexible to meet various demands from wide range of customers for flat disc sputter targets. We are supporting US national labs and worldwide univeristies and researching facilities with our target material and other customized product. Please check here for the list of our other Selenides sputter targets
Sputtering Cadmium Selenide
The semiconductor compound cadmium selenide (CdSe) serves as a vital sputtering target for fabricating optoelectronic devices that leverage its unique photoconductive and luminescent capabilities. In particular, industries use sputtered CdSe thin films to construct photovoltaic solar cells, light-emitting diodes, laser diodes, and photodetectors.
The sputtering process involves accelerating argon ions at the CdSe target inside a high-vacuum chamber. Upon impact, the energetic argon particles eject CdSe molecules that deposit as a uniform film on the substrate. Careful control over parameters like ion energy, pressure, target-substrate spacing, and temperature allows tuning of the film’s stoichiometry, thickness, and crystallinity. Proper handling of the toxic CdSe target is also critical and must follow strict protocols to prevent exposure.
Overall, CdSe’s direct bandgap and strong optical properties make it an indispensable material for optoelectronics. Devices employing sputtered CdSe films leverage these attributes to absorb and emit targeted wavelengths efficiently. Despite the challenges of its toxicity, CdSe offers capabilities that currently lack viable alternatives. Therefore, sputtering remains a key fabrication technique to harness CdSe’s potential for technologies from solar panels to advanced sensors.
Cadmium Selenide Sputtering Target Packaging
QS Advanced Materials Incs sputter targets are vacuum sealed in plastic bags for shipping. We also use heavy foam to protect it. Common documents together with the sputter targets are packing list and analytical report e.g. COA
