The Key Role of Neodymium

The rare earth metal neodymium, atomic number 60, derives its name from the Greek for 'new twin' - neos didymos. Along with iron and boron, neodymium forms the crucial NdFeB magnets powering much of modern technology. With unique magnetic properties, this plentiful lanthanide enables miniaturization and efficiency improvements across electronics, renewable energy, and engineering. Though its name means 'new twin', applications of neodymium proved revolutionary. Blending neodymium powders into permanent magnets unleashed a wave of innovation - from headphones to wind turbines - that continues today. Despite supply concerns, this mighty rare earth remains indispensable for technologies striving toward greater performance in smaller packages.

Discovered in 1885 by Carl Auer von Welsbach, the rare earth metal neodymium today proves ubiquitous in technologies relying on its magnetic might. MRI machines employ neodymium magnets to generate precise scans, while crystal lasers harness its optical qualities. Mixing neodymium with iron and boron creates the NdFeB permanent magnets that allow miniaturization of electronics from headphones to computers. Despite initial rarity, neodymium production expanded to meet surging technological demand. Now purified in industrial quantities, this plentiful lanthanide's unique properties empower innovations spanning clean energy, transportation, medicine and consumer gadgets that utilize its magnetic, electronic and optical capabilities.

Properties

Silvery-white neodymium metal exhibits both ductile and malleable qualities. This lanthanide displays robust paramagnetism, ordering antiferromagnetically at extremely low temperatures of 7.5 and 19.9 K. At these frigid points, independent cubic and hexagonal sites within neodymium develop distinct spontaneous magnetic moments. Thanks to its high specific heat capacity, neodymium finds use in specialized cryocooler applications. But its true value emerges when combined with iron and boron to create the powerful NdFeB permanent magnets. These magnets enable miniaturization and improved efficiency for technologies that transformed modern life - from headphones to hybrid cars. Though just one of many rare earths, neodymium's unique magnetic properties impart outsized influence.

Of the 31 characterized radioactive neodymium isotopes, excluding isomers, half-lives range tremendously - from a fleeting 0.65 seconds for neodymium-125 up to an incredible 7.9 billion years for neodymium-150. Chemically, the silvery lanthanide metal boasts an atomic weight of 144.24g along with melting and boiling points of 1,870°F and 5,565°F respectively. Neodymium primarily forms compounds in the +3 oxidation state, although unstable +2 states are possible.

Importantly, metallic neodymium oxidizes readily upon air exposure, generating neodymium oxide and spalling. Therefore, long-term storage requires vacuum sealing or inert gas blanketing to prevent progressive oxidation. While slowly reactive with most mineral acids, neodymium notably withstands hydrofluoric acid. Overall, this reactive rare earth displays diverse isotopic, chemical, and physical properties that must be carefully considered when applying its magnetic capabilities across modern technologies.

Neodymium's Natural Origins

Though not the most abundant rare earth, neodymium arises more plentifully than most elements in Earth's crust. Typically concentrated around 18% in minerals, it exceeds lead reserves twofold yet falls short of copper's levels by half. The principal neodymium ores are monazite and bastnasite, which modern mining operations actively target. Extraction and purification utilize liquid-liquid separation and ion exchange to isolate neodymium from other rare earths. Electrolysis of molten neodymium halides or metallothermic calcium reduction of the fluoride then produces the pure metal, ready for alloying into NdFeB magnets. While scarce compared to common metals, improved processing allows neodymium production to meet rising technological demand. This potent rare earth's natural availability enables wide deployment, powering innovation.

Applications ofRareRarthElementNeodymium

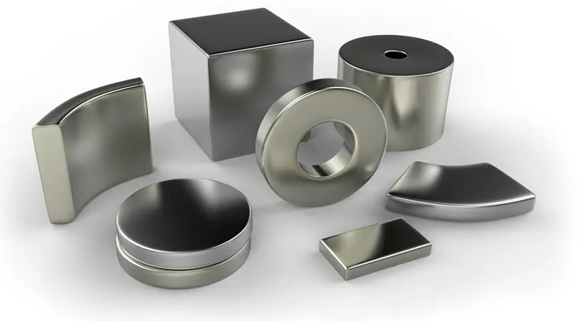

1.     Permanent Magnets - Neodymium is a key component of neodymium iron boron (NdFeB) magnets, which are the strongest type of permanent magnets known. They are used in a wide range of products including motors, generators, headphones, microphones, and computer hard drives.

2.     Neodymium sputtering targets and Neodymium evaporation materials are used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD).

3.     Lasers - Neodymium-doped crystals are used as gain media in solid-state lasers. The neodymium ions provide lasing activity in the infrared spectral region. These lasers have applications in materials processing, medicine, defense, and more.

4.     Glass Coloring - Neodymium oxide is used as a glass additive to provide vivid purple and gray shades to certain types of glass. It is used in camera filters, decorative glass, and automobile windows.

5.     Ceramics - Neodymium is used to provide blue, purple, and other hues to ceramic glazes, enamels, and tiles. It enhances the visual appeal and durability of pottery and ceramic wares.

6.     Petroleum Catalysts - Neodymium oxides serve as cracking catalysts in petroleum refineries. They help produce high-octane gasolines through alkane catalytic reforming.

7.       Neodymium's unique magnetic, optical, and catalytic properties lend it to this diverse range of uses that span across many modern technologies and industries. Despite its rarity, its capabilities continue to make it highly valued.

When alloyed with iron and boron, the rare earth neodymium forms the highly potent NdFeB permanent magnets now ubiquitous in electronics. With its characteristically high melting and boiling points, neodymium delivers enduring performance across extreme temperatures. Of the three known neodymium isotopes, some provide specialized capabilities. For example, the isotope neodymium-146 is used to test neutrino theories. From TVs to computers, many modern technologies harness neodymium’s exceptional magnetic properties to enable more compact, efficient designs. This versatile rare earth continues finding new applications.
