High Purity Materials
QS Advnaced Materials use a lot high purity materials to make our products. Some of these materials are also suitable as a product themselves. These includes zirconium and hafnium crystal bar, Electrolyte Iron (Fe), Distilled rare earth metal, and semicon grade boron, etc.
Crystal Bars
Zirconium and hafnium are two closely related elements that share similar properties and crystal structures. Both elements belong to the same group in the periodic table, known as the "titanium group". A crystal bar of Zirconium or Hafnium refers to a high-purity Zr or Hf metal produced using the iodide crystallization method. In the manufacturing process, the raw materials of Zr or Hf are chemically reacted to form zirconium iodide or hafnium iodide. Due to the relatively low boiling point of iodides, they can be evaporated in a vacuum environment without too much heat. Subsequently, the iodides are heated to high temperatures in a reaction vessel and then decompose and depositing onto a master wire due to the higher temperature of master wire. For Zirconium crystal bars, a Zr wire is used as the master wire, while for Hafnium crystal bars, an Hf wire is used. This crystallization method yields polycrystalline metallic rods, hence the name "crystal bar." The evaporative recrystallization process significantly improves the purity of the metal, typically achieving levels of 99.95% or even higher.
Semicon Grade Boron
As a lightweight element, boron is not inherently expensive. However, in order to meet the requirements of the semiconductor industry, high-purity boron with a purity level exceeding 99.99% is necessary. QSAM, in collaboration with its partners, has obtained a supply of high-purity boron to cater to the needs of research institutions, addressing the demand for large-scale experiments. Additionally, QSAM can provide assistance for large-scale production, ensuring a reliable source of high-purity boron.

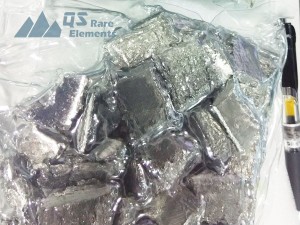

Distilled Rare Earth Metal
Rare earth metal distillation purification is a process used to separate and purify rare earth metals. It involves heating the mixed rare earth metals to their respective boiling points and then condensing and collecting the vaporized metals. Tantalum condensers are commonly used due to their excellent resistance to corrosion and high melting point. They efficiently cool and condense the vaporized rare earth metals, allowing for their collection. Tungsten crucibles are utilized to contain the rare earth metal raw material during distillation. This distillation process enables the production of high-purity rare earth metals for various industrial applications.
Related Articles
Choose Your Most Suitable 3D Printing Materials
3D Printing Ceramics And Appllication In Avaition
5 Common Material Analysis Method
Surface Finishing Techniques For Metal Materials
Qs Rare Elements Supplies Pure And Alloyed Tungsten Products
-

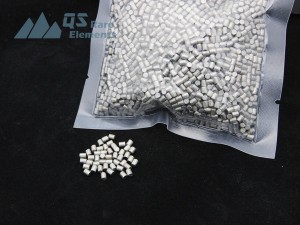

Zirconium Pellets
Material: High purity Zirconiumr(99.95% Hf<100ppm)
Ref. Price: $265.00/100g
Diameter:1~3mm
Length: 2~5mm
-
Zirconium and Hafnium Crystal Bars
MOQ:$300
Catalog No. RM40-CB(Zirconium), RM72-CB (Hafnium)
Typical Lead Time: 2-3 weeks
-
High Purity Boron Powder
High Purity, semiconductor grade, boron powder (amorphous phase)
Purity: >99.999% trace metal basis.
AverageParticle Size: 200mesh, 400mesh
Catalog No.: HPBP MOQ: $100
-

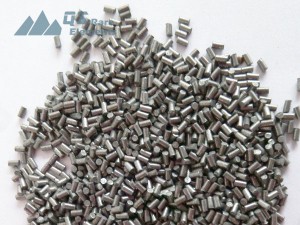

Hafnium Evaporation Materials
Hafnium evaporation materials.
Form: Turnings, Pellets
Purity:>99.95% Zr<0.5%
-
Electrolyte Iron (Fe) / High purity iron
Composition: Electrolyte Iron (Fe)
Catalog No.:HP11-APT
Purity:99.9%~99.99%
Typical Lead Time:1~2 weeks
