Bright Prospects for the Application of GaAs Crystal Solar Cells: Latest Research Reveals Excellent Mechanical Properties
Introduction
As global energy demand continues to grow and environmental issues become increasingly severe, the development of high-efficiency, cost-effective, and eco-friendly new energy technologies has become an urgent priority. Among the many emerging solar cell materials, GaAs crystals have stood out with their unique advantages, attracting the attention of researchers and the industry.
Latest Research Findings
Recently, a research team led by JIN Min and FANG Yong-Zheng from the School of Materials Science and Engineering at the Shanghai University of Engineering Science published a paper titled "Mechanical Property Evaluation of GaAs Crystal for Solar Cells" in Chinese Physics Letters. The study systematically evaluated the mechanical properties, particularly the microhardness and fracture toughness, of silicon (Si)-doped (111) GaAs crystals, to explore their potential and limitations in solar cell applications.
Advantages of GaAs Crystals
GaAs crystals are an important III-V compound semiconductor with unique physical and chemical properties, which have found widespread applications in integrated circuits, optoelectronic devices, and microwave devices. In recent years, with the continuous development of solar cell technology, GaAs crystals have found a new field of application. Compared to traditional silicon-based solar cells, GaAs solar cells have several significant advantages:
Suitable bandgap: The bandgap of GaAs crystals is around 1.42 electron volts, which is very close to the ideal bandgap for single-junction solar cells, allowing them to more effectively absorb and convert solar energy.
High absorption rate: GaAs crystals have a very high absorption rate for the visible and near-infrared regions of the solar spectrum, meaning that a relatively thin GaAs wafer can fully absorb solar energy, reducing material usage and manufacturing costs.
Strong radiation resistance: In space applications such as spacecraft and satellites, solar cells need to withstand cosmic radiation. GaAs crystals have a strong resistance to radiation damage, allowing GaAs solar cells to maintain stable performance even in harsh space environments.
Research Methods and Process

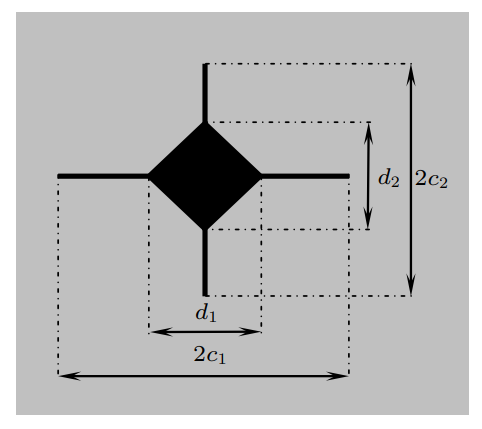

Schematic diagram of microindentation
To systematically evaluate the mechanical properties of GaAs crystals, the research team led by JIN Min and FANG Yong-Zheng employed the microindentation technique. First, they grew high-quality silicon-doped (111) GaAs crystals in a laboratory-designed crystal pulling apparatus. During the crystal growth process, the researchers used a pyrolytic boron nitride (PBN) crucible as the container. PBN is a material with excellent high-temperature resistance and chemical stability, commonly used for semiconductor crystal growth under high-temperature conditions.
QSAM Inc., as the leading manufacturer of PBN crucibles in the market, has provided high-quality services to researchers. Their professional manufacturing capabilities and customized services have enabled the researchers to obtain the most suitable high-quality crucibles for their experimental needs, thus facilitating the advancement of scientific research.

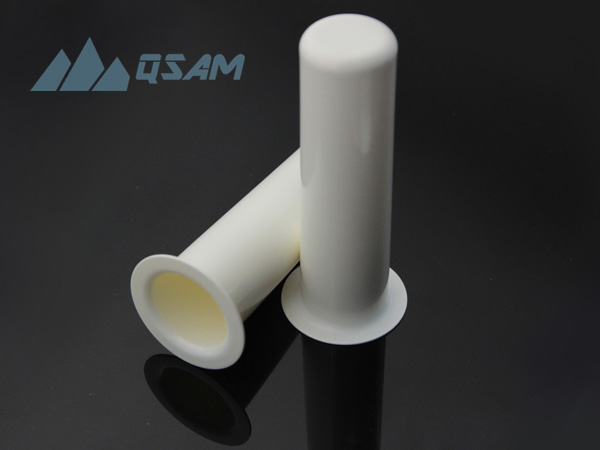

PBN Crucible
The PBN crucible was sealed in a quartz ampule and heated under vacuum conditions, with the furnace temperature controlled at around 1270 degrees Celsius. After the crystal growth was completed, the researchers precisely oriented the crystals using X-ray diffraction, and then cut and polished the crystals into 1 mm thick wafers. Next, they conducted indentation experiments using a Vickers microhardness tester, applying different loads ranging from 0.1 to 1 kilogram, to evaluate the microhardness and fracture toughness of the GaAs crystals.
Research Results and Significance
Through a series of carefully designed experiments and in-depth analyses, the research team led by JIN Min and FANG Yong-Zheng obtained important data on the mechanical properties of GaAs crystals. They found that the Vickers microhardness of GaAs crystals exhibited a nonlinear change with increasing load, decreasing from 5.59 GPa at 0.1 kg to 5.03 GPa at 1 kg. Additionally, the fracture toughness also showed a nonlinear behavior related to the load, which was mainly attributed to the energy dissipation during the crack propagation process in the wafers.
These research results are of great significance for understanding the potential and limitations of GaAs crystals in solar cell applications. The excellent mechanical properties of GaAs crystals, such as high hardness and good fracture toughness, make them an ideal material for manufacturing high-efficiency and durable solar cells. This study not only reveals the outstanding mechanical properties of GaAs crystals but also lays a solid foundation for further exploration of their applications in solar cells.
Future Outlook
As the research on the performance of GaAs crystals and the optimization of production processes continue, the application prospects of GaAs crystals in the solar cell field will become even more promising. In the near future, the new generation of high-efficiency solar cells represented by GaAs are expected to play an increasingly important role in the global energy structure, making significant contributions to addressing the energy and environmental challenges facing humanity.
