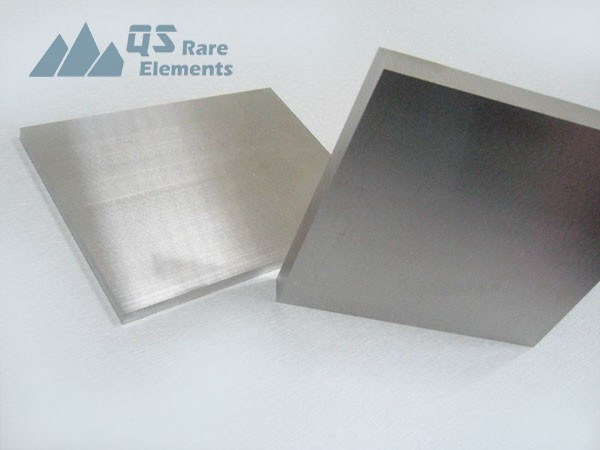

Silver Tungsten(Ag-W)Alloy
Composition: Silver, Tungsten(Ag,W)
Catalog No.: RF7447
Material purity: 99.95%
Typical lead time: 3 weeks
- Product Details
Tungsten silver alloy introduction
Silver tungsten is a composite material that combines the beneficial properties of both silver (Ag) and tungsten (W). This alloy is widely recognized for its excellent electrical and thermal conductivity, high melting point, and exceptional strength. The material typically consists of a matrix of silver with embedded tungsten particles.
Silver Tungsten s high electrical and thermal conductivity, along with its low electrical contact resistance, make it an ideal choice for electrical and electronic applications. It is commonly used in electrical contacts, switches, relays, and circuit breakers, where reliable and efficient electrical conduction is crucial. The combination of silver superior conductivity and Tungsten s high melting point allows silver tungsten to withstand high current and high-temperature conditions.
Furthermore, silver Tungsten s exceptional hardness and wear resistance make it suitable for applications that require durability and resistance to friction and erosion. It is often used in electrical discharge machining (EDM) electrodes, welding electrodes, and contact materials for heavy-duty switches and relays.
Silver tungsten is available in various forms, including rods, plates, discs, and custom shapes. These products can be manufactured through powder metallurgy techniques, where silver and tungsten powders are compacted and sintered to form a solid composite.
QSAMs silver tungsten products
As silver and tungsten shall not really melt together, Ag-W is produced by powder metallurgy. Due to the high electric conductivity and relatively high max. working temperature of this material, silver-Tungsten alloy is usually used in electric component, such as electrodes. QS Advanced Materials could supply both copper tungsten and silver tungsten in many shapes. As the place of where to buy tungsten silver material, QSAM is always glad to receive your inquiry and always welcome custom design with drawing.
Common composition of silver-Tungsten alloy
Composition wt. % |
Density g/cm3 |
Hardness HB Kgf/mm2 |
Resistivity micro Ome*cm |
IACS% |
Bending strengthMpa |
W50/Cu50 |
11.85 |
115 |
3.2 |
54 |
- |
W55/Cu45 |
12.3 |
125 |
3.5 |
49 |
- |
W60/Cu40 |
12.75 |
140 |
3.7 |
47 |
- |
W65/Cu35 |
13.3 |
155 |
3.9 |
44 |
- |
W70/Cu30 |
13.8 |
175 |
4.1 |
42 |
790 |
W75/Cu25 |
14.5 |
195 |
4.5 |
38 |
885 |
W80/Cu20 |
15.15 |
220 |
5 |
34 |
980 |
W85/Cu15 |
15.9 |
240 |
5.7 |
30 |
1080 |
W90/Cu10 |
16.75 |
260 |
6.5 |
27 |
1160 |
Tungsten silver packaging
Tungsten is stable in air and packed without vacuum seal, unless requested. Wooden crater is applied when the cargo is over weight.
*Mill report available for our tungsten alloy.
