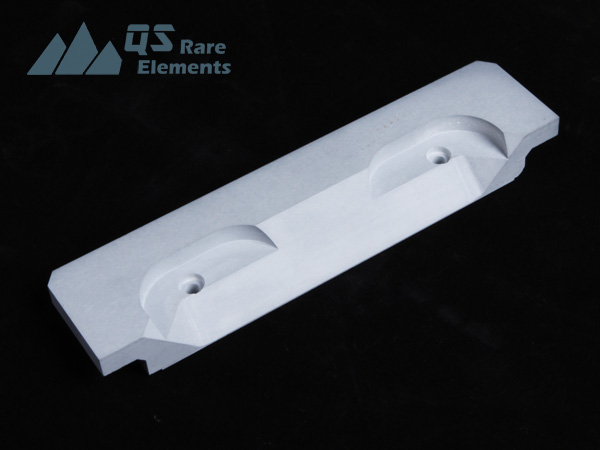

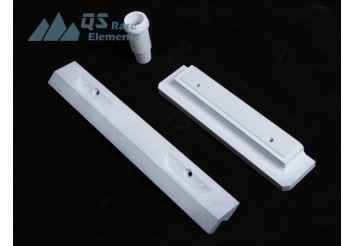

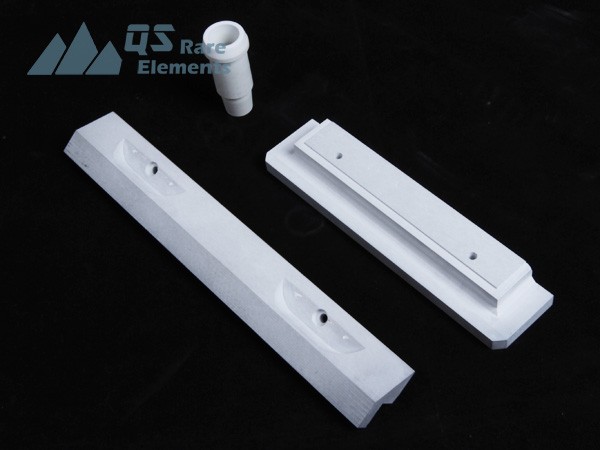

Boron Nitride PVD Components
Material Brand: BN99, TPBN, HBN, AlN-BN, ZCBN
Purity: 99.5% (BN99)
Additive: <0.5 wt% (BN99, TPBN)
Available max. size: 16" x16" x8"
- Product Details
Why Boron Nitride Components
Boron nitride ceramics is a series of materials that have great electric insulating, low dielectric constant, and high dielectric strength. In general, it is an ideal material for insulators to be used in PVD equipment, that needs to constrain the electric arc towards the target and protect the other components in the vacuum chamber. With relatively lower wettability of metal, target material deposited on the BN components could be removed easier.
Composite Materials available for BN PVD Components
QSAM
also developed BN based composite ceramic materials that have better strength
and wear resistance. To combine the property of BN and other ceramic material
such as aluminum nitride or zirconia, the composite material usually have good
enough electric insulation but longer service life.
List of boron nitride material for BN PVD Components
BN99 (Data Sheet) |
>99% Pure boron nitride material |
BN-SiC (Data Sheet) |
SiC enhanced boron nitride |
BN-AlN (Data Sheet) |
Aluminum Nitride enhanced BN |
CBN (Data Sheet) |
CaO enhanced BN, Similar with HBN |
ZCBN (Data Sheet) |
Zirconia enhanced BN |
PBN (Data Sheet) |
Pyrolytic boron nitride/CVD boron nitride |
Because boron nitride is a machinable ceramic material, we can make it according to the drawings in about 2 weeks. Please click inquiry to send us message and upload a drawing if necessary.
Other Boron Nitride Products
BN PVD Components Packaging
As a ceramic material, boron nitride is quite fragile in a lot of cases. The BN PVD components are usually hold in plastic bags by vacuum, and protect with heavy foam.
